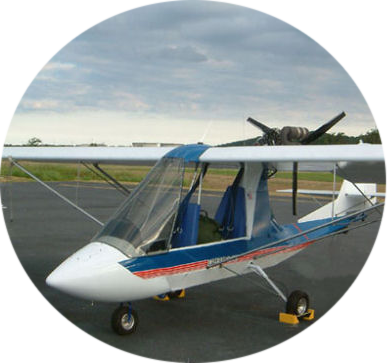

Excalibur Amateurbuilt Kit Specifications

Wide Body – 30 in. inside width both front and rear seat

Wingspan – 31 ft. 6 in.

Chord – 60 in.

Length – 20 ft. 0 in.

Height – 6 ft. 0 in.

Wing area – 185 sq. ft.

Standard Engine – Hirth 3202

Empty weight – 450 lbs.

Useful load – 650 lbs.

Ultimate load factor  +6 G’s -4 G’s

Build time – 100-200 hours

Field assembly time – 20 min.

Airframe – Aviation grade Aluminum tube (6061-T6, 2024-T3), Steel, 4130 Chromoly,  Stainless Steel pop rivets, AN/Mil Spec. hardware

Standard Covering – SUPERFLITE, FAA approved fabric

CALL US TODAY (863) 471-0099

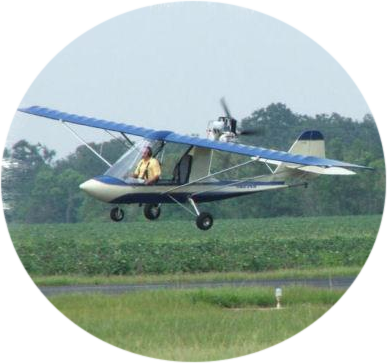

VNE – 100 mph

Top level speed – 90 mph

Cruise speed – 90 mph

Stall speed – 30-35 mph

Climb rate – 1,200 fpm solo, 700 fpm dual

Take off roll – 96 ft. solo, 196 ft. dual *

Glide ratio – 11:1 solo, 9:1 dual

Service ceiling – 14,000 solo, 12,500 dual

Fuel used at cruise – 2.3 gph to 4 gph, depending on your cruise speed

Fuel capacity – 10 gal. (although you can add wing tanks)

CALL US TODAY (863) 471-0099

Excalibur Aircraft Tail Kit

• Attach a few hinges

• Cover with fabric
• Paint


Excalibur Aircraft Wing Kit

• Attach the ribs

• Attach a few hinges
• Cover with fabric
• Paint


Excalibur Aircraft Fuselage Kit

• Mount the engine
• Run wires to the instruments

• Attach gear legs, wheels, and brakes
• Cover with fabric
• Paint

• “Are there any parts to make?”  NO

• “Is there any welding to do?”  NO

“Any critical holes to drill?”  NO

• Customers have been averaging 150-200 hours for first time builders!

CALL US TODAY (863) 471-0099

Excalibur Aircraft Wings

• 150 lbs

• Crate Size: L 192″ x H  60″ x W  6″

Excalibur Aircraft Additional tubes box:

• 50 lbs
• Box Size: L  120″ x H  6″  x W 8″

CALL US TODAY (863) 471-0099

CALL US TODAY (863) 471-0099

There are a great deal of differences between the Excalibur Aircraft and the Challenger.

Click here to compare the two aircraft.
